uPVC SWR System
  • High Quality Standards
  • UV Stabilized
  • Non Corrosive
  • Elegant
  • Light Weight
  • High Flow Rates – No Chocking
  • Quick & Convenient to Install
  • High Chemical Resistance
  • Cost Effective
  • Stronger, Resilient and Longer Lasting
Available Sizes:

        Pipes – TYPE-A – 40 mm to 160 mm
        TYPE-B – 75 mm to 160 mm
        2.5 Kg – 75 mm & 110 mm
        Fittings – 75 mm & 110 mm

Description
Pipes
Fitting
Standred & Specification
Features
Godavari Group is pleased to introduce uPVC SWR Systems for Soil, Waste and Rain Water under the brand name WATERFLO.

WATERFLO uPVC SWR System are UV Stabilised, Cost Effective and Easy to Install. WATERFLO uPVC SWR Pipes is available in range of 75mm, 110mm & 160mm and SWR Fittings is available in range of 75mm & 110mm. The entire range is manufactured as per Indian IS Standards and Specifications.

SWR PIPES

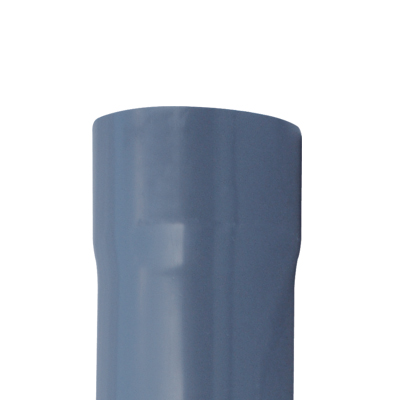

WATERFLO ISI marked SWR Pipes are available in both 'O' Ringfit and Selfit pipes with two differrent class named as TYPE A & TYPE B as per IS:13592.

SWR FITTINGS
WATERFLO ISI marked SWR Fittings are available in 75mm & 110mm. Fittings are also available in both 'O' Ring type and Pasting type as per IS:14735.



Pipe TYPE-A (Ringfit & Selfit)
Size
(mm.)
Standard Packing
3 mtrs
40

50
75 10
90 5
110 5
160 1
Pipe TYPE-B (Ringfit & Selfit)
SWR PIPES CONFORMING TO IS:13592

NOMINAL
PIPE SIZE
(DN) 		MEAN INSIDE
DIAMETER
(mm) 		WALL THICKNESS (mm)
TYPE A TYPE B
40 40 + 0.3
 2.00 (+/-) 0.20 3.50 (+/-) 0.30
50 50 + 0.3
 2.00 (+/-) 0.20 3.50 (+/-) 0.30
63 63 + 0.3
 2.00 (+/-) 0.20 3.50 (+/-) 0.30
75 75 + 0.3
 2.00 (+/-) 0.20 3.50 (+/-) 0.30
90 90 + 0.3 2.10 (+/-) 0.20 3.50 (+/-) 0.30
110 110 + 0.4 2.45 (+/-) 0.25 3.50 (+/-) 0.30
160 160 + 0.5 3.50 (+/-) 0.30 4.30 (+/-) 0.30



SWR FITTINGS CONFORMING TO IS:14735

Size
(mm) 		WALL
THICKNESS AT
PLAIN END (mm)
(MIN.)		 WALL THICKNESS AT
SOKCET
(MIN.)		 SOCKET
DEPTH (mm)
(MIN.)		 INSIDE DIAMETEROF
SOCKET AT MIDPOINT (mm)		 OUTSIDE DIAMETER OF
SPIGOT PORTION (mm)
MIN. MAX. MIN MAX
75 3.20
 2.90 40.00 75.10 75.30 75.00 75.30
110 3.20
 2.90  48.00 110.10 110.40 110.00 110.40
160 4.00
 3.60  58.00 160.20 160.50 160.00 160.50
Benefits
  • High Quality Standards

  • UV Stabilized

  • Non Corrosive

  • Light Weight

  • High Flow Rates – No chocking

  • Quick & Convenient to Install

  • High Chemical Resistance

  • Cost Effective

  • Stronger, Resilient and Longer Lasting

  • Elegant

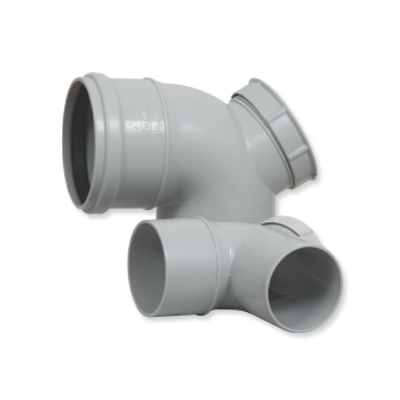

    Bend 87.5 withDoor

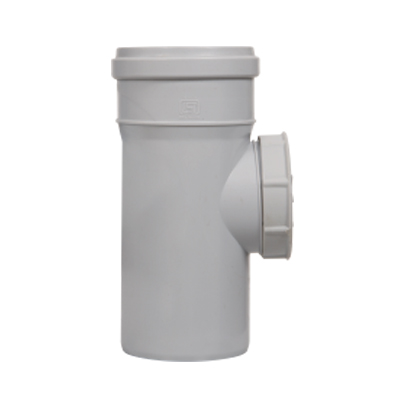

    CleansingPipe

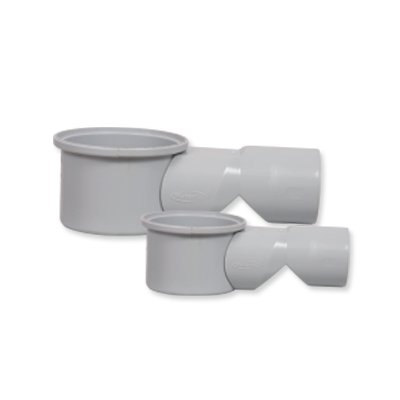

    NahaniTrap

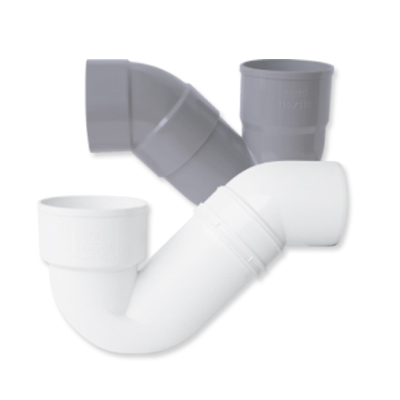

    P.Trap
    Bend 45
    Bend 87.5

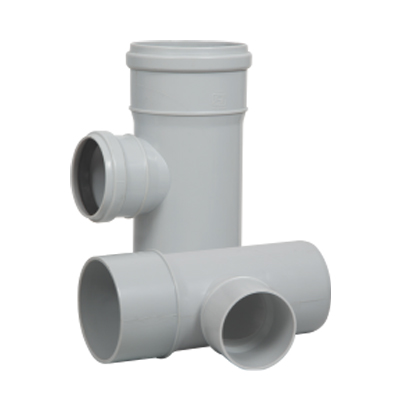

    ReducingTee

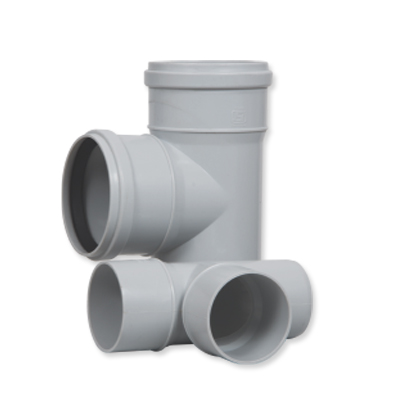

    SingleTee

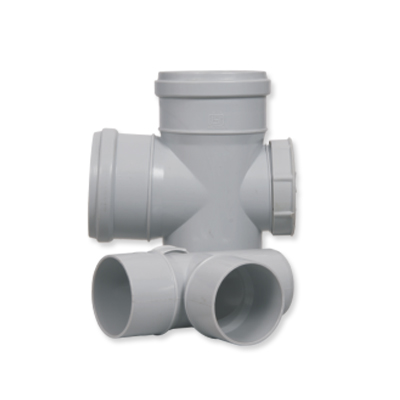

    SingleTeeWithDoor

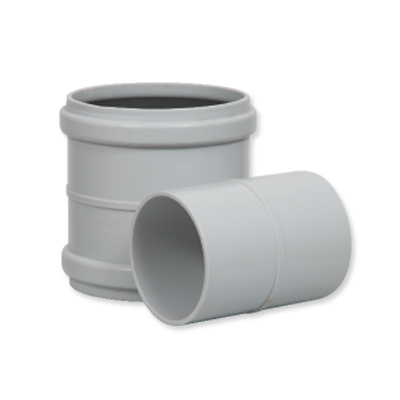

    SWRCoupler

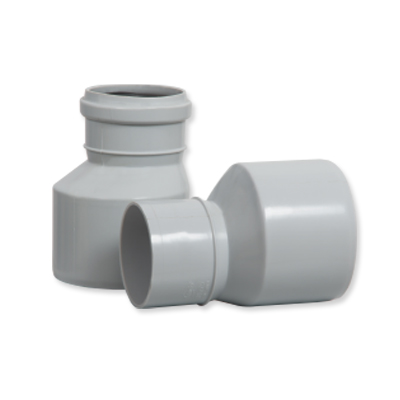

    SWR.Reducer

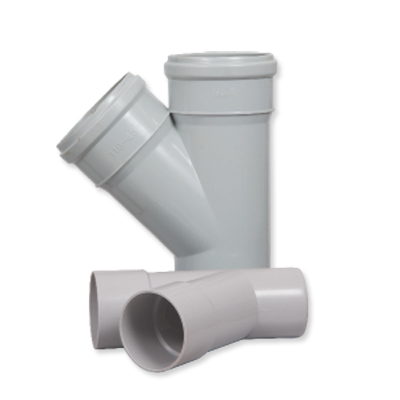

    SWR.Single.Y

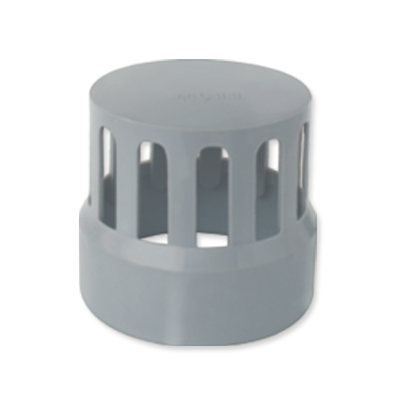

    VentCowl

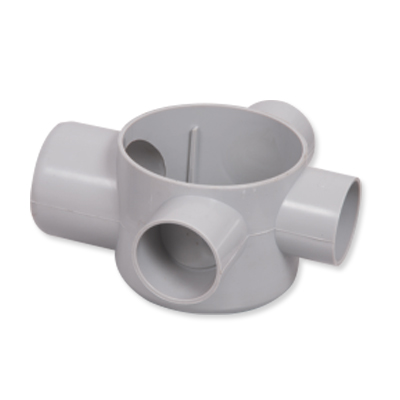

    MultiFloorTrap

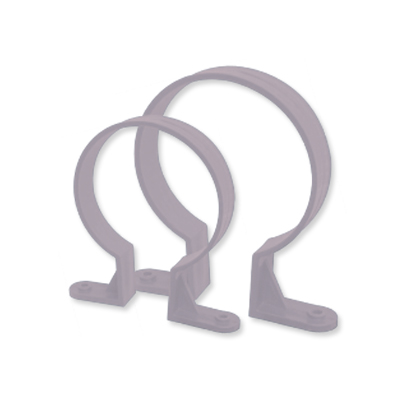

    PipeClip

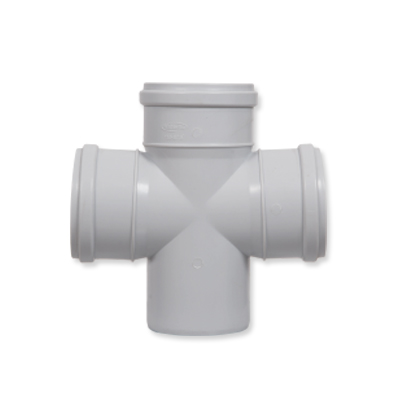

    Cross Tee
