uPVC Agrimaster

Product

Description

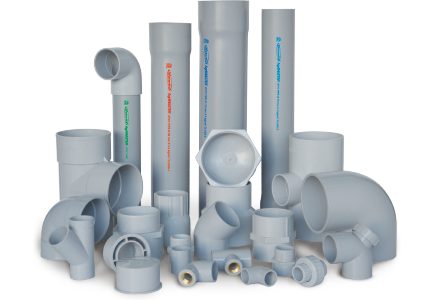

WATERFLO AGRIMASTER offers wide range of uPVC Pressure Pipes and Fittings used for Agriculture and Water Distribution System. WATERFLO Agrimaster uPVC Pressure Pipes are manufactured asper IS 4985 standard covering complete range from 20mm to 315mm with various pressure ratings as defined in the standard.

WATERFLO Agrimaster Fittings are manufactured asper IS 7834 as well as company’s standards covering complete range from 20mm to 250mm with various pressure ratings.

Standards & Specification

IS : 7834 Specification for Injection Moulded PVC Socket Fittings with Solvent Cement Joints for Water Supplies.
IS : 4985 Specification for unplasticized PVC Pipes for Potable Water Supplies.

Available Sizes

PIPES:

Class 1 (2.5 kg/cm²) from 90mm to 315 mm
Class 2 (4 kg/cm²) from 63mm to 315 mm
Class 3 (6 kg/cm²) from 40mm to 315 mm
Class 4 (8 kg/cm²) from 25mm to 315 mm
Class 5 (10 kg/cm²) from 20mm to 315 mm

FITTINGS:

Plumbing (16 kg/cm²) from 20mm to 50 mm

Marking & Uniformity

Pipes and Fittings made from uPVC Compound and are clearly marked with the Manufacturers trademark, Size, Class & Pressure rating and applicable IS standard.

Class of Pipe	Marking Colour
Class 1	Red
Class 2	Blue
Class 3	Green
Class 4	Brown
Class 5	Yellow

Tests On Pipes & Fittings

Dimension & Visual Appearance Test, Stress Relief Test, Reversion Test, Density Test, Opacity Test, Drop Impact Test, Hydrostatic Pressure Test, Sulphated Ash Content Test, Vicat Softening Temperature Test, Effect on Water Test

Pipes

ISI Pipe 2.5 kg/cm²
Product Code	Size (in.)	Size (mm)
AP2590	3"	90
AP25110	4"	110
AP25125	4½"	125
AP25140	5"	140
AP25160	6"	160
AP25180	7"	180
AP25200	8"	200
AP25225	9"	225
AP25250	10"	250
AP25280	11"	280
AP25315	12"	315

ISI Pipe 4 kg/cm²
Product Code	Size (in.)	Size (mm)
AP463	2"	63
AP475	2½"	75
AP490	3"	90
AP4110	4"	110
AP4125	4½"	125
AP4140	5"	140
AP4160	6"	160
AP4180	7"	180
AP4200	8"	200
AP4225	9"	225
AP4250	10"	250
AP4280	11"	280
AP4315	12"	315

ISI Pipe 6 kg/cm²
Product Code	Size (in.)	Size (mm)
AP640	1¼"	40
AP650	1½"	50
AP663	2"	63
AP675	2½"	75
AP690	3"	90
AP6110	4"	110
AP6125	4½"	125
AP6140	5"	140
AP6160	6"	160
AP6180	7"	180
AP6200	8"	200
AP6225	9"	225
AP6250	10"	250
AP6280	11"	280
AP6315	12"	315

ISI Pipe 8 kg/cm²
Product Code	Size (in.)	Size (mm)
AP825	¾"	25
AP832	1"	32
AP840	1¼"	40
AP850	1½"	50
AP863	2"	63
AP875	2½"	75
AP890	3"	90
AP8110	4"	110
AP8125	4½"	125
AP8140	5"	140
AP8160	6"	160
AP8180	7"	180
AP8200	8"	200
AP8225	9"	225
AP8250	10"	250
AP8280	11"	280
AP8315	12"	315

ISI Pipe 10 kg/cm²
Product Code	Size (in.)	Size (mm)
AP1020	½"	20
AP1025	¾"	25
AP1032	1"	32
AP1040	1¼"	40
AP1050	1½"	50
AP1063	2"	63
AP1075	2½"	75
AP1090	3"	90
AP10110	4"	110
AP10125	4½"	125
AP10140	5"	140
AP10160	6"	160
AP10180	7"	180
AP10200	8"	200
AP10225	9"	225
AP10250	10"	250
AP10280	11"	280
AP10315	12"	315

ISI Plumbing Pipes²
Product Code	Size (in.)	Size (mm)
AP1520	½"	20
AP1525	¾"	25
AP1532	1"	32
AP1540	1¼"	40
AP1550	1½"	50

Pipes

Elbow 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFE1020	½"	20	1200
AFE1025	¾"	25	600
AFE1032	1"	32	400
AFE1063	2"	63	65
AFE1075	2½"	75	40
AFE1090	3"	90	25
AFE10110	4"	110	15

Elbow 10 kg

Elbow 6 kg

Elbow 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFE640	1¼"	40	240
AFE650	1½"	50	150
AFE663	2"	63	65
AFE675	2½"	75	50
AFE690	3"	90	25
AFE6110	4"	110	15
AFE6140	5"	140	16
AFE6160	6"	160	8
AFE6180	7"	180	4
AFE6200	8"	200	4
AFE6250	10"	250	2

Elbow 6 kg

Elbow 4 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFE463	2"	63	128
AFE475	2½"	75	72
AFE490	3"	90	60
AFE4110	4"	110	36
AFE4140	5"	140	16
AFE4160	6"	160	8

Elbow 4 kg

Elbow LW
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFELW90	3"	90	60
AFELW110	4"	110	36

Elbow LW

Elbow EQUAL
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFEE463	2"	63	105
AFEE475	2½"	75	60
AFEE490	3"	90	60
AFEE4110	4"	110	36

Elbow EQUAL

Elbow BLISS
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFEB63	2"	63	168
AFEB75	2½"	75	144
AFEB90	3"	90	75
AFEB110	4"	110	48
AFEB140	5"	140	18
AFEB160	6"	160	8

Elbow BLISS

Coupler 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFC1020	½"	20	1600
AFC1025	¾"	25	1100
AFC1032	1"	32	600

Coupler 10 kg

Coupler 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFC640	1¼"	40	350
AFC650	1½"	50	200
AFC6110	4"	110	60
AFC6140	5"	140	27
AFC6160	6"	160	18
AFC6180	7"	180	12
AFC6200	8"	200	8
AFC6250	10"	250	4

Coupler 6 kg

Coupler 4 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFC463	2"	63	100
AFC475	2½"	75	80
AFC490	3"	90	45
AFC4110	4"	110	60
AFC4140	5"	140	27
AFC4160	6"	160	18

Coupler 4 kg

Tee 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFT1020	½"	20	800
AFT1025	¾"	25	500
AFT1032	1"	32	270
AFT1063	2"	63	40
AFT1075	2½"	75	30
AFT1090	3"	90	15
AFT10110	4"	110	10

Tee 10 kg

Tee 6 kg

Tee 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFT640	1¼"	40	160
AFT650	1½"	50	80
AFT663	2"	63	40
AFT675	2½"	75	30
AFT690	3"	90	15
AFT6110	4"	110	10
AFT6140	5"	140	12
AFT6160	6"	160	8
AFT6180	7"	180	2
AFT6200	8"	200	2
AFT6250	10"	250	2

Tee 6 kg

Tee 4 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFT463	2"	63	108
AFT475	2½"	75	75
AFT490	3"	90	40
AFT4110	4"	110	24
AFT4140	5"	140	12
AFT4160	6"	160	8

Tee 4 kg

Tee LW
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFTLW90	3"	90	40
AFTLW110	4"	110	24

Tee LW

Tee EQUAL
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFTE463	2"	63	84
AFTE475	2½"	75	75
AFTE490	3"	90	40
AFTE4110	4"	110	24

Tee EQUAL

Tee BLISS
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFTB63	2"	63	126
AFTB75	2½"	75	90
AFTB90	3"	90	48
AFTB110	4"	110	32
AFTB140	5"	140	12
AFTB160	6"	160	8

Tee BLISS

MTA 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFM1020	½"	20	2000
AFM1025	¾"	25	1200
AFM1032	1"	32	800

MTA 10 kg

MTA 6 kg

MTA 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFM640	1¼"	40	400
AFM650	1½"	50	250
AFM663	2"	63	150
AFM675	2½"	75	80
AFM690	3"	90	50
AFM6110	4"	110	30
AFM6140	5"	140	21
AFM6160	6"	160	12
AFM6180	7"	180	10
AFM6200	8"	200	8

MTA 6 kg

Door Elbow
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFDE50	1½"	50	70
AFDE63	2"	63	128
AFDE75	2½"	75	60
AFDE90	3"	90	54
AFDE110	4"	110	24

Door Elbow

Door Elbow 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFDE650	1½"	50	60

Door Elbow 6 kg

End Cap Plain 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFECP1020	½"	20	2000
AFECP1025	¾"	25	1600
AFECP1032	1"	32	1000

End Cap Plain 10 kg

End Cap Plain 6 kg

End Cap Plain 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFECP640	1¼"	40	600
AFECP650	1½"	50	300
AFECP663	2"	63	200
AFECP675	2½"	75	120
AFECP690	3"	90	70
AFECP6110	4"	110	50
AFECP6140	5"	140	20
AFECP6160	6"	160	16
AFECP6180	7"	180	10
AFECP6200	8"	200	9
AFECP6250	10"	250	6

End Cap Plain 6 kg

End Cap Plain 4kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFECP490	3"	90	180
AFECP4110	4"	110	100
AFECP4140	5"	140	20
AFECP4160	6"	160	36
AFECP4180	7"	180	18
AFECP4200	8"	200	12
AFECP4225	9"	225	8

End Cap Plain 4 kg

End Cap Threaded 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFECT1020	½"	20	2000
AFECT1025	¾"	25	1600
AFECT1032	1"	32	1000

End Cap Threaded 10 kg

End Cap Threaded 6 kg

End Cap Threaded 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFECT640	1¼"	40	600
AFECT650	1½"	50	300
AFECT663	2"	63	200
AFECT675	2½"	75	120
AFECT690	3"	90	70
AFECT6110	4"	110	50
AFECT6140	5"	140	35
AFECT6160	6"	160	25
AFECT6200	8"	200	15

End Cap Threaded 6 kg

Single "Y"
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFSY640	1¼"	40	60
AFSY650	1½"	50	40
AFSY663	2”	63	40
AFSY75	2½"	75	20
AFSY90	3"	90	15
AFSY6110	4"	110	12
AFSY6140	5"	140	6
AFSY6160	6"	160	3
AFSY6200	8"	200	2

Single "Y"

Door Tee
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFDT50	1½"	50	54
AFDT63	2"	63	96
AFDT75	2½"	75	60
AFDT90	3"	90	36
AFDT110	4"	110	20

Door Tee

Door Tee 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFDT650	1½"	50

Door Tee 6 kg

FTA 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFF1020	½"	20	1600
AFF1025	¾"	25	1000
AFF1032	1"	32	600

FTA 10 kg

FTA 6 kg

FTA 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFF640	1¼"	40	320
AFF650	1½"	50	200
AFF663	2"	63	120
AFF675	2½"	75	70
AFF690	3"	90	40
AFF6110	4"	110	20
AFF6140	5"	140	15
AFF6160	6"	160	12
AFF6180	7"	180	8
AFF6200	8"	200	6

FTA 6 kg

Reducer FTA

Reducer FTA
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFRF102520	¾" x ½"	25x20	1200
AFRF103220	1" x ½"	32x20	800
AFRF103225	1" x ¾"	32x25	700
AFRF104020	1¼" x ½"	40x20	500
AFRF104025	1¼" x ¾"	40x25	500
AFRF104032	1¼” x 1"	40x32	400
AFRF7563	2½" x 2"	75x63	70
AFRF9063	3" x 2"	90x63	40
AFRF9075	3" x 2½"	90x75	40
AFRF11063	4" x 2"	110x63	30
AFRF11075	4" x 2½"	110x75	30
AFRF11090	4" x 3"	110x90	30
AFRF14063	5" x 2"	140x63	18
AFRF14075	5" x 2½"	140x75	18
AFRF14090	5" x 3"	140x90	18
AFRF140110	5" x 4"	140x110	18
AFRF16075	6" x 2½"	160x75	12
AFRF16090	6" x 3"	160x90	12
AFRF160110	6" x 4"	160x110	12
AFRF20090	8" x 3"	200x90	8
AFRF200110	8" x 4"	200x110	8

Reducer FTA

Door "Y"
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFDY50	1½"	50
AFDY63	2"	63	34

Door "Y"

Tail Piece 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFTP663	2”	63	150
AFTP675	2½"	75	100
AFTP690	3”	90	70
AFTP6110	4”	110	35
AFTP6140	5”	140	24
AFTP6160	6”	160	16
AFTP6200	8”	200	10

Tail Piece

Reducer Bush 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFRB102520	¾" x ½"	25x20	2400
AFRB103220	1" x ½"	32x20	1200
AFRB103225	1" x ¾"	32x25	1200

Reducer Bush 10 kg/cm

Reducer Bush 6 kg

Reducer Bush 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFRB64032	1¼" x 1"	40x32	800
AFRB65032	1½" x 1"	50x32	400
AFRB65040	1½" x 1¼"	50x40	400
AFRB66320	2"x½"	63x20	200
AFRB66325	2"x¾"	63x25	200
AFRB66332	2" x 1"	63x32	200
AFRB66340	2" x 1¼"	63x40	200
AFRB66350	2" x 1½"	63x50	200
AFRB67520	2½" x ½"	75x20	140
AFRB67525	2½" x ¾"	75x25	140
AFRB67532	2½" x 1"	75x32	140
AFRB67540	2½" x 1¼"	75x40	140
AFRB67550	2½" x 1½"	75x50	140
AFRB67563	2½" x 2"	75x63	140
AFRB69020	3" x ½"	90x20	80
AFRB69025	3" x ¾"	90x25	80
AFRB69032	3" x 1"	90x32	80
AFRB69040	3" x 1¼"	90x40	80
AFRB69050	3" x 1½"	90x50	80
AFRB69063	3" x 2"	90x63	80
AFRB69075	3" x 2½"	90x75	80
AFRB611050	4" x 1½"	110x50	50
AFRB611063	4" x 2"	110x63	50
AFRB611075	4" x 2½"	110x75	50
AFRB611090	4" x 3"	110x90	50
AFRB614075	5" x 2½"	140x75	24
AFRB614090	5" x 3"	140x90	24
AFRB6140110	5" x 4"	140x110	24
AFRB616075	6" x 2½"	160x75	21
AFRB616090	6" x 3"	160x90	21
AFRB6160110	6" x 4"	160x110	21
AFRB6160140	6" x 5"	160x140	21

Reducer Bush 6 kg

Reducer Tee

Reducer Tee
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFRT102520	¾" x ½" "	25x20	500
AFRT103220	1" x ½"	32x20	300
AFRT66320	2" x ½"	63x20	50
AFRT66325	2" x ¾"	63x25	50
AFRT66332	2" x 1"	63x32	50
AFRT67520	2½" x ½"	75x20	30
AFRT67525	2½" x ¾"	75x25	30
AFRT67532	2½" x 1"	75x32	30
AFRT69020	3" x ½	90x20	25
AFRT69025	3" x ¾"	90x25	25
AFRT69032	3" x 1"	90x32	25
AFRT611063	4" x 2"	110x63	12
AFRT611075	4” x 2½"	110x75	12
AFRT611090	4” x 3”	110x90	12
AFRT414075	5" x 2½"	140x75	12
AFRT414090	5" x 3"	140x90	12
AFRT4140110	5" x 4"	140x110	12
AFRT416075	6" x 2½"	160x75	8
AFRT416090	6" x 3"	160x90	8
AFRT4160110	6" x 4"	160x110	8
AFRT4160140	6" x 5"	160x140	8
AFRT6200110	8" x 4"	200x110	2
AFRT6200140	8" x 5"	200x140	2
AFRT6200160	8" x 6"	200x160	2
AFRT6250160	10" x 6"	250x160	2
AFRT6250200	10" x 8"	250x200	2

Reducer Tee

Reducer 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFR102520	¾" x ½"	25x20	1200
AFR103220	1" x ½"	32x20	800
AFR103225	1" x ¾"	32x25	800

Reducer 10 kg

Reducer 6 kg

Reducer 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFR64032	1¼" x 1"	40x32	400
AFR65032	1½" x 1"	50x32	300
AFR65040	1½" x 1¼"	50x40	200
AFR66332	2" x 1"	63x32	150
AFR66340	2" x 1¼"	63x40	150
AFR66350	2" x 1½"	63x50	150
AFR67550	2½" x 1½"	75x50	100
AFR67563	2½" x 2"	75x63	100
AFR69063	3" x 2"	90x63	50
AFR69075	3" x 2½"	90x75	50
AFR611050	4" x 1½"	110x50	40
AFR611063	4" x 2"	110x63	40
AFR611075	4" x 2½"	110x75	40
AFR611090	4" x 3"	110x90	40
AFR614075	5" x 2½"	140x75	21
AFR614090	5" x 3"	140x90	21
AFR6140110	5" x 4"	140x110	21
AFR616075	6" x 2½"	160x75	12
AFR616090	6" x 3"	160x90	12
AFR6160110	6" x 4"	160x110	12
AFR6160140	6" x 5"	160x140	12
AFR6180110	7" x 4"	180x110	10
AFR6180140	7" x 5"	180x140	10
AFR6180160	7" x 6"	180x160	10
AFR6200110	8" x 4"	200x110	8
AFR6200140	8" x 5"	200x140	8
AFR6200160	8" x 6"	200x160	8
AFR6200180	8" x 7"	200x180	8
AFR6250110	10" x 4"	250x110	4
AFR6250140	10" x 5"	250x140	4
AFR6250160	10" x 6"	250x160	4
AFR6250180	10" x 7"	250x180	4
AFR6250200	10" x 8"	250x200	4

Reducer 6 kg

Elbow 45° 10 kg & 6 kg

Elbow 45° 10 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFE451020	½"	20	1200
AFE451025	¾"	25	600
AFE451032	1"	32	400

Elbow 45° 6 kg/cm²
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFE45640	1¼"	40	240
AFE45650	1½"	50	150
AFE45663	2"	63	100
AFE456140	5"	140	15
AFE456200	8"	200	4

Elbow 45° 10 kg & 6 kg

Bend 45°
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
SSFB4575	2½"	75	55
SSFB4590	3"	90	50
SSFB45110	4"	110	32
SSFB45160	6"	160	10

Bend 45°

Service Saddle

Service Saddle
Product Code	Size (in.)	Size (mm)	Qty (Pkg.)
AFSS4020	1¼" x ½"	40x20	80
AFSS4025	1¼" x ¾"	40x25	80
AFSS4032	1¼" x 1"	40x32	80
AFSS5020	1½"x ½"	50x20	80
AFSS5025	1½" x ¾"	50x25	80
AFSS5032	1½" x 1"	50x32	80
AFSS6320	2"x ½"	63x20	50
AFSS6325	2" x ¾"	63x25	50
AFSS6332	2" x 1"	63x32	50
AFSS7520	2½" x ½"	75x20	50
AFSS7525	2½" x ¾"	75x25	50
AFSS7532	2½" x 1"	75x32	50
AFSS9020	3" x ½"	90x20	40
AFSS9025	3" x ¾"	90x25	40
AFSS9032	3" x 1"	90x32	40
AFSS11020	4" x ½"	110x20	40
AFSS11025	4" x ¾"	110x25	40
AFSS11032	4" x 1"	110x32	40
AFSS14020	5" x ½"	140x20	30
AFSS14025	5" x ¾"	140x25	30
AFSS14032	5" x 1"	140x32	30
AFSS16020	6" x ½"	160x20	20
AFSS16025	6" x ¾"	160x25	20
AFSS16032	6" x 1"	160x32	20

Service Saddle

Brass Elbow

Brass Tee

Brass FTA

Brass MTA

Union

Ball Valve

Elbow Threaded

Red. Elbow Threaded

Red. Tee Threaded

Elbow Threaded (BSW Thread)

MTA (BSW Thread)

FTA (BSW Thread)

End Cap Threaded (BSW Thread)

Long Plug

Solvent Cement

Features & Benefits

Features
＋ −
Long Life I Non Corrosive I Continuous Flow I Cost Effective I Lightweight I Less Electricity Cost I Easy to Install, Repair & Replace I Hygienic Water Supply I Non Conductor to Heat-electric I High Strength To Weight Ratio I Non Toxic.
Fields of Application
＋ −
Rural & Urban Water Distribution System I Tubewell Connections I Agricultural & Irrigation Schemes I Industrial Process Line I Protective Covering for Power & Communication Cables.

Book appointment and out team will be get in touch wity you ASAP.
